Enjoy the benefits of warm flooring and even heat distribution with TrueCable (12W/M) thin Underfloor Heating Cable Kits, designed for installation on wooden or concrete floors under floor tiles. The TrueHeat Underfloor Heating Loose Cable is available in a wide range of sizes and an unlimited amount of heating cable can be used to suit your requirements.
The TrueHeat (12W/m) thin underfloor heating cable kit is designed for installation on wooden or concrete floors under floor tiles. TrueHeat underfloor heating cables are available in a wide range of sizes and an unlimited amount of heating mats can be used to heat any floor area.
Selecting the Correct Cable:
To select the correct cable you need to know a few things, the free floor area size that you want heated, and whether you would like it to be your primary or secondary heat source.
Once you know the free floor area you can move on to selecting the correct cable for yourself. Each cable has a minimum and maximum square metres, these are what the cable would cover at 100w/m2 being the smallest measurement up to 200w/m2 being the highest measurement. Please check the table in the images section for reference.
Control:
Up to 3600W of TrueHeat heating cables can be controlled by a single underfloor heating thermostat.
For larger areas, please use multiple thermostats or a contactor to switch the load.
(A contactor is a device designed for switching an electrical current on or off, used in higher current capacity situations.)
For warm floor applications, use a thermostat with floor sensor only.
For total heating a thermostat should be used with air and floor sensor, the exception to this would be wet areas, such as a bathroom, where the thermostat must be mounted outside the wet area with the floor sensor in the wet area floor.
Applications:
TrueCable can be used in any room with a wooden or concrete base floor, the only stipulation is that the underfloor heating cable is covered by a flexible tile adhesive and/or self-levelling compound.
Guarantee:
Every TrueHeat under floor heating cable is supplied with a lifetime manufacturers guarantee*
*Thermostat Guarantee – 2 Years

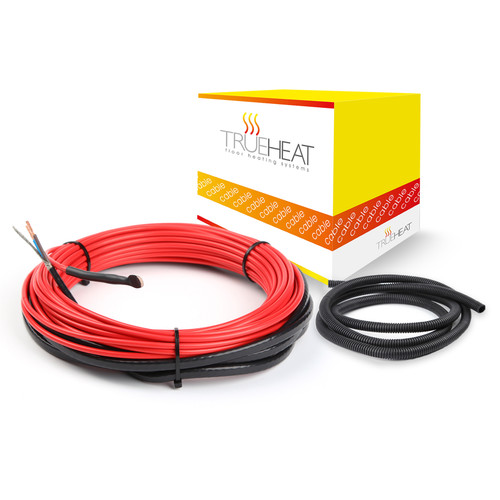

TrueHeat underfloor heating cable kits contain the following:-
-
12W/m Underfloor Heating Cable with 1 cold Tail
-
Flexible conduit c/w bung for floor sensor
-
Thermostat c/w floor sensor (if selected)
-
Comprehensive Instruction Manual
Thermostat Options:
Manual Dial Thermostat
The Ezheat Manual Thermostat is ultra-compact, provides precise control and is easily configured to control the temperature of electric or Wet Underfloor Heating Systems.
Features:
- 2-pole safety power switch, on/off control output for heating device.
- Shuts down the output when the heating is over the chosen limit to protect flooring.
Manual Thermostat Includes:
1x remote floor sensor | 2x fixing screws | 1x Installation Manual
Programmable Thermostat
Features:
- 2-pole safety power switch, on/off control output for heating device.
- Built-in 10K NTC sensor & external floor sensor, three control mode available.
- Shut down output when heating is over set temperature limit to protect your floor.
- 7-days Programmable or non-programmable available.
- Up to 6 heating periods per day.
- Keep user setting during power loss.
- Can be set so that sensing is floor only, air only, or air and floor.
Programmable Thermostat Includes:
1x remote floor sensor | 2x fixing screws | 1x Installation Manual
Touchscreen Thermostat
Features:
- 2-pole safety power switch, on/off control output for heating device.
- Built-in 10K NTC sensor & external floor sensor, three control mode available.
- Shut down output when heating is over set temperature limit to protect your floor.
- 7-days Programmable or non-programmable available.
- Up to 6 heating periods per day.
- Keep user setting during power loss.
- Keylock Function.
- Can be set so that sensing is floor only, air only, or air and floor.
Programmable Thermostat Includes:
1x remote floor sensor | 2x fixing screws | 1x Installation Manual
WiFi Thermostat
Features:
- WiFi Programmable via Smartphone / App
- Easy to Use
- 7 Days Programmable
- Up to 6 heating periods per day
- Compatible with Amazon Alexa and Google Home
WiFi Thermostat Includes:
1x remote floor sensor | 2x fixing screws | 1x Installation Manual
WiFi Deluxe Thermostat
Features:
- Smartphone Controllable via App
- Time Display
- Holiday Function
- Off Time Frost Protection
- Reverse Output Function
- Floor High-Temperature Protection
- Open Window Detection Function
- Key-Lock
- Sensor Selection
- Hold Function
Manual Thermostat Includes:
1x remote floor sensor | 2x fixing screws | 1x Installation Manual
